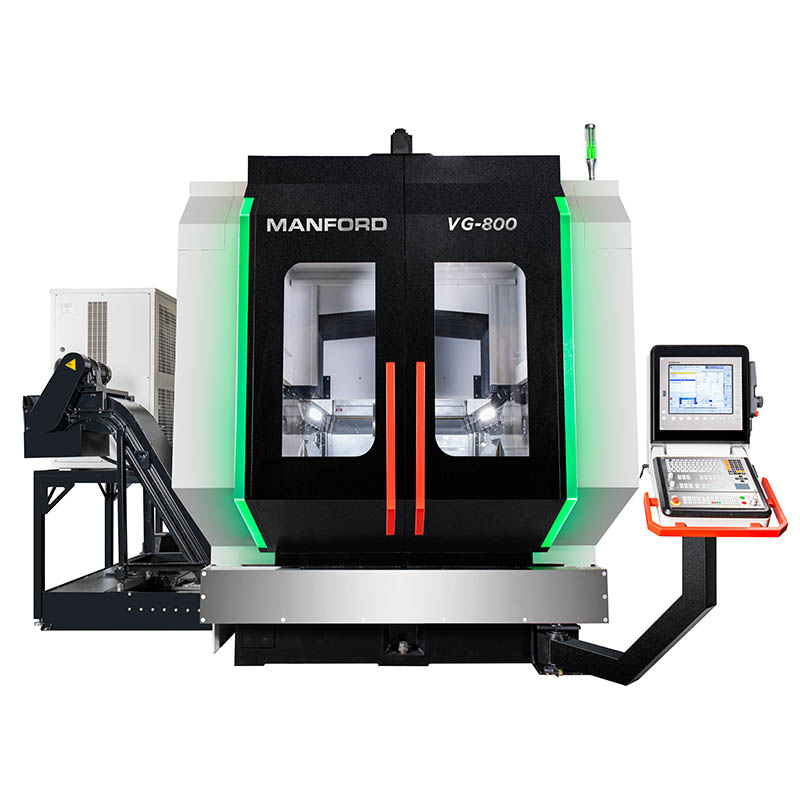

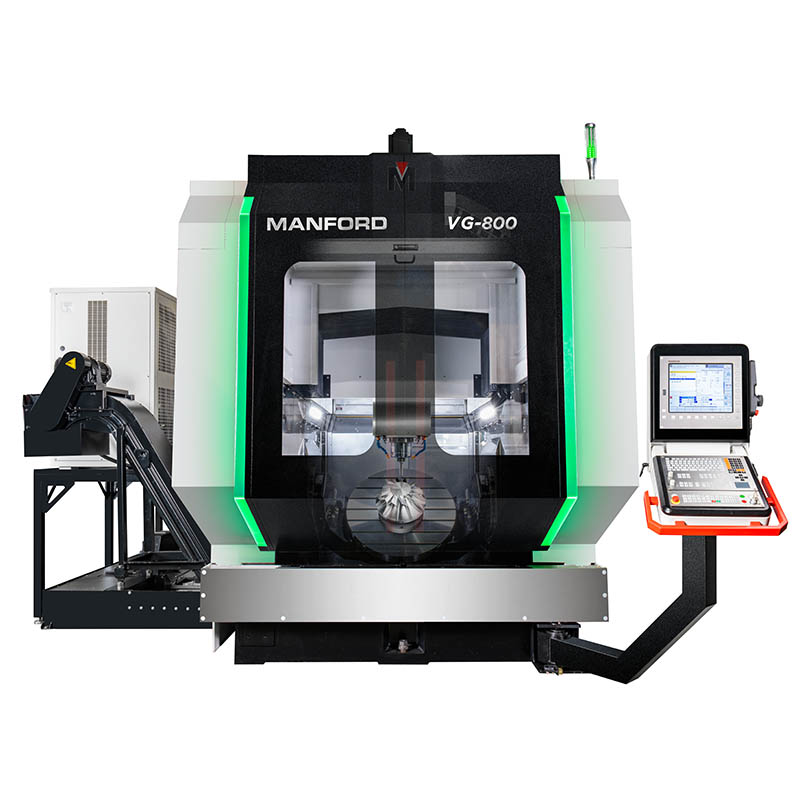

5 Axis Machining Center
Gantry Type


CNC Control

Heidenhain TNC640

Siemens 840D

X travel

800 mm (31.5")

Y travel

1,2450 mm (-510~+390+345 Tool change travel)(49")

Z travel

620 mm (24.4")

Spindle nose to table surface

100~720 mm (3.9"~28.3")

Table Diameter

Ø 800 mm (31.5")

T-slot (Q'ty x Size x Dist)

7x14x100 mm

Table Load Capacity

1,000 kgs (Horizontal)

500 kgs (Tilting)

A Axis Tilting Range


C Axis rotating Range


Spindle Transmission

Built-in type

Spindle Taper


Spindle Speed


Spindle Motor

21/25 Kw

Rapid Feedrate (XYZ)

48/48/48 M/min

ATC Capacity

32 tools (opt. up to 120 tools)

Max Tool Diameter

Full:  Ø 75 mm (3")

Next empty: Ø 125 mm (4.9")


3850x4849x3887 mm

Machine Weight

20,000 kgs


* Spinlde motor power depends on motor selection

*The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performance of the machine. Specifications are subject to change without notice.
