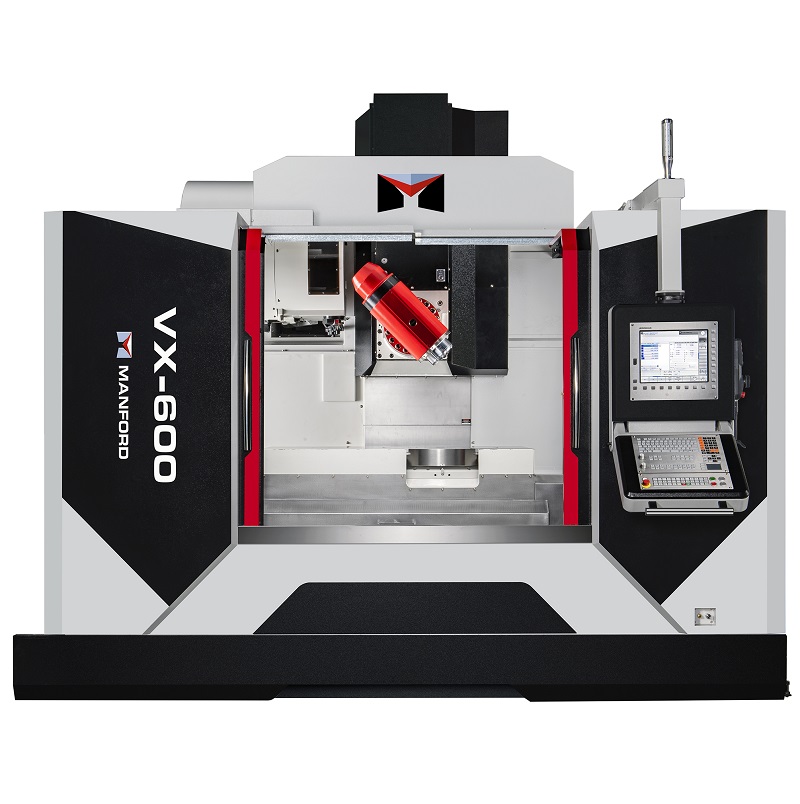

Milling5 Axis Machining CenterTilting Head

VX-600

inquiry
inquiry

Specification

X travel

1,300 mm
Y travel

700 mm
Z travel

700 mm
SPINDLE NOSE TO TABLE SURFACE

20 ~ 720 mm

Table size

700 x 1,450 mm

T-slot (Q'ty x Size x Dist)

5 x 18 x 125 mm
MAX. TABLE LOAD 1,000 kgs

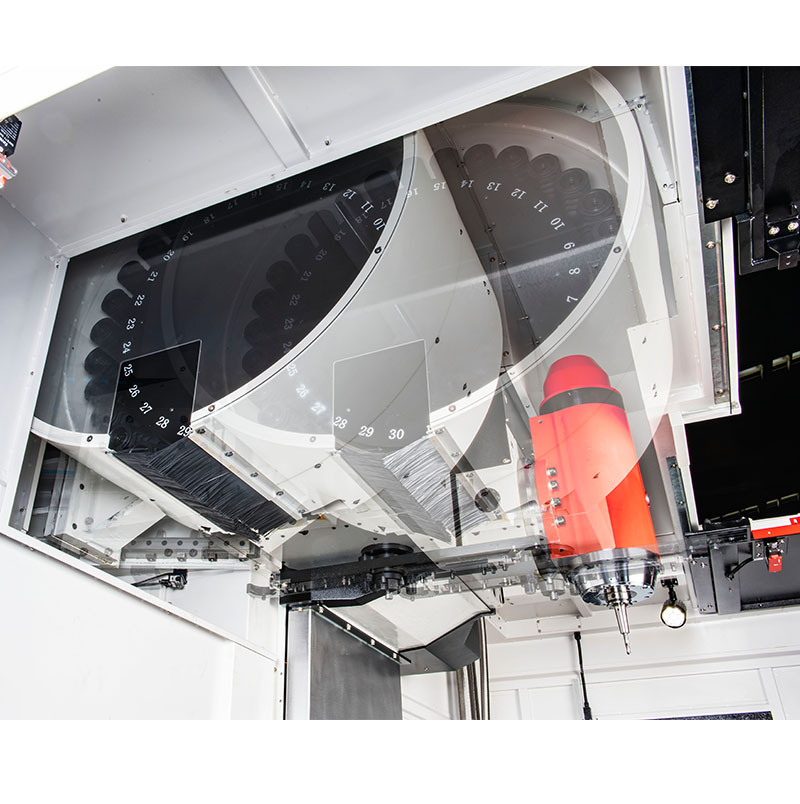

ATC Capacity

24 / 30 / 32 / 40 tools

CNC Control

 Heidenhain TNC640

Siemens ONE

Tilting Spindle Head (B axis)

Transmission

Warm gear

Tilting Angle

 -110˚ ~ +30˚

Spindle Transmission

Build-in

Spindle Taper

 BBT40
Spindle Speed

15,000 rpm

Spindle Power

(S1 100% / S6 60% / S6 40%)

 21 ~ 25 kW

C Axis

Transmission

DD motor

Table Diameter

Ø 630 mm

C Axis rotating Range

360˚

Max. Speed

120 rpm

Note: Specifications are subject to change without further notice.

Features

  • VX-600 5-Axis Machining Center is designed for multiaxes machining of small and large series of complex 5-side workpieces. With swiveling head and rotary table, VX series is able to do simultaneous 5 axes machining with high accuracy.
  • With outstanding high speed and high precision machining capabilities.
  • VX-600 5-axis machining center has been highly recognized by customers.

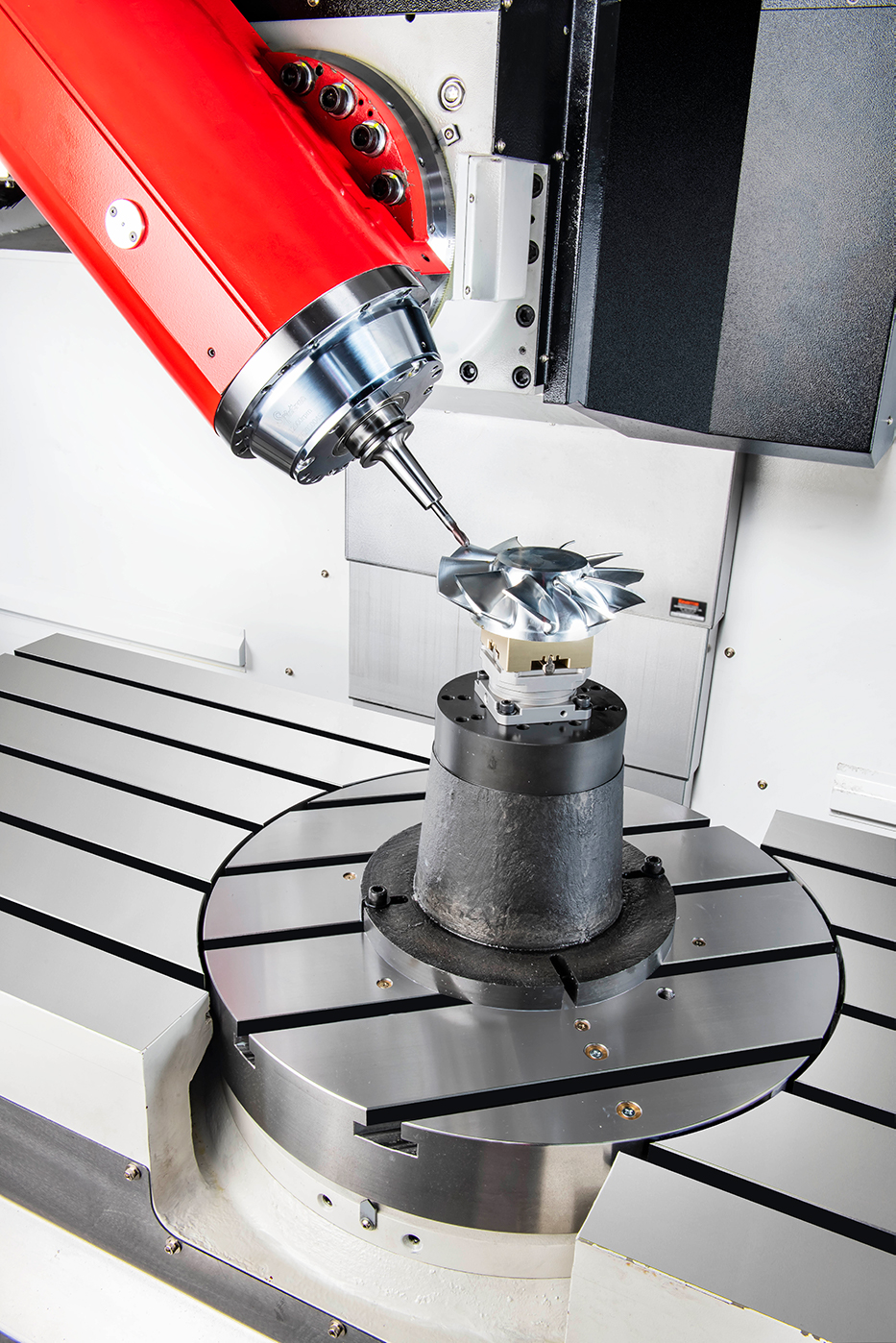

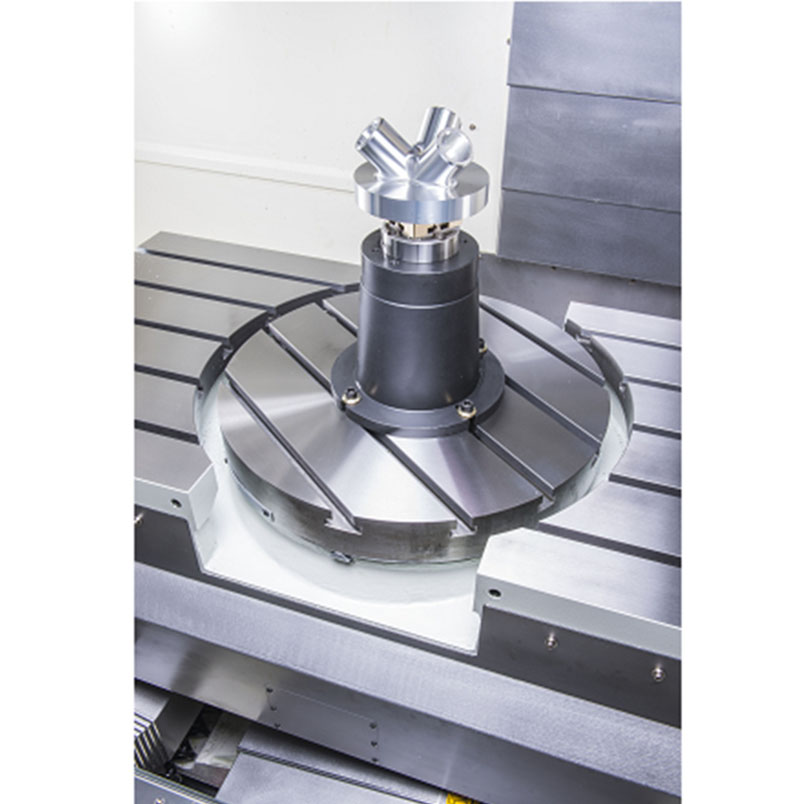

  • VX-600 is designed with a swiveling spindle head and equipped with a 15,000rpm built-in type high speed spindle. In addition, the machine employs an embedded rotary table.
  • VX series application industry, such as Aerospace industry, Automotive industry and Hi Tech electronics industry.
  • Any complex work piece can be accomplished with only a single setup.
