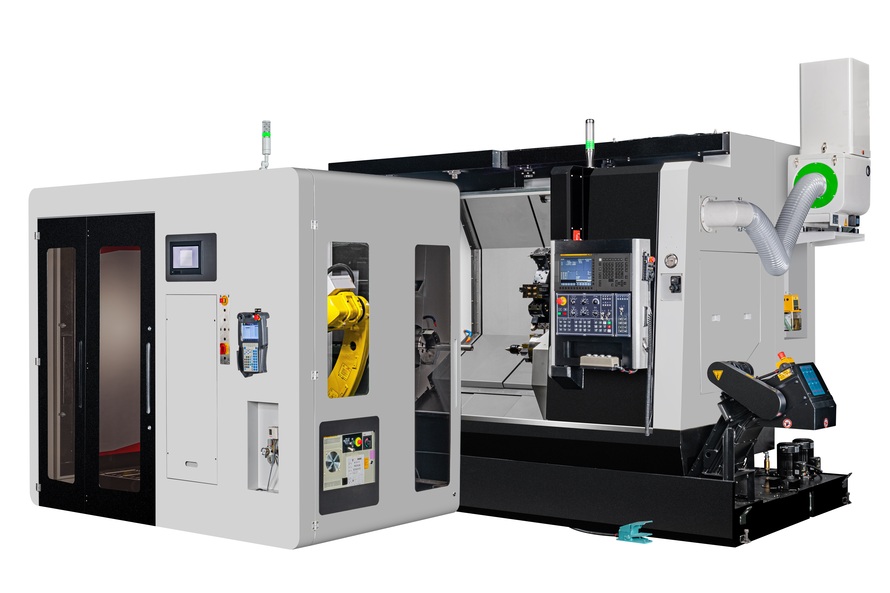

TurningHorizontal Lathe

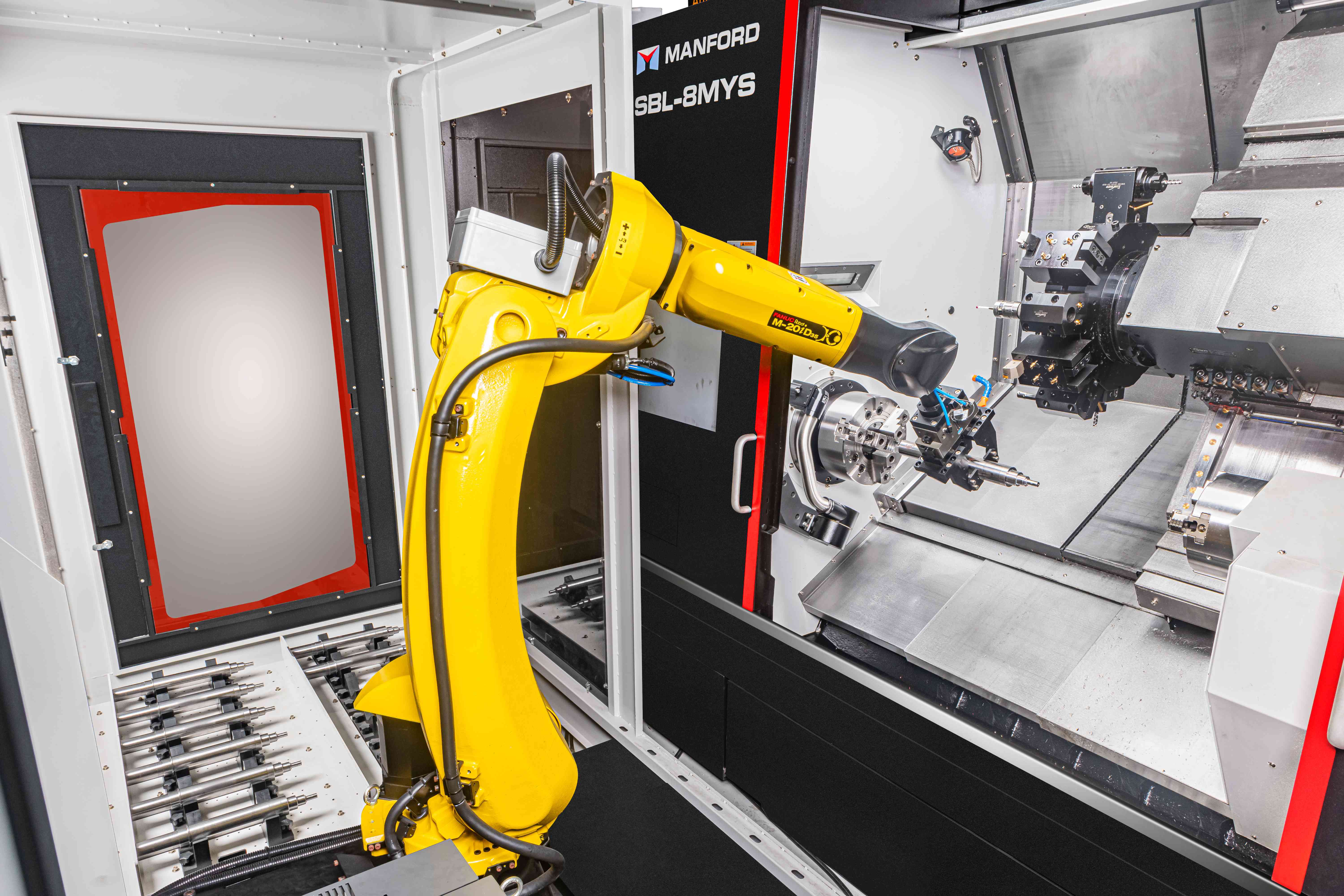

SBL-8MYS

inquiry
inquiry

Specification

MACHINE MODEL SBL-8MYS
Capacity
Max. Swing over bed Ø650 mm
Max. Swing over saddle Ø400 mm
Max.Turning diameter Ø400 mm
Max. Working Length 800 mm
Spindle
Spindle nose type A2-8
Max. Spindle speed 3500 rpm
Front bearing I.D of spindle Ø130 mm
Spindle bore Ø92.2 mm
Max. Bar capacity Ø77 mm
Chuck size 10"/3 Jaws
Axis Feed
X axis travel 200+20 mm
Z axis travel 800/750 mm
Rapid feed- X/Z/Z2/Y axis 30/30/24/10 m/min
Cutting feed rate 1-1000 mm/min
Dia. of B.S (X/Z axis) X: Ø32   Z:Ø40
Turret
Type Power
Number of tool stations 12 pcs
Tool shank size 25 mm
Max. Boring bar Dia. Ø40 mm
Motor
Main spindle motor power 11/15 Kw
Feed motor  4/4 Kw
Power turret motor 3.7/5.5 Kw
Lubrication Pump 70 W
Hydraulic oil pump 3 HP
Coolant pump 0.75 Kw
Chip conveyor 0.2 Kw
Power requirement 45 KVA
Utility
Hydraulic tank capacity 70 L
Coolant tank 250 L
Lubrication tank 4 L
Air source 6 kg/cm2

Note: Specifications are subject to change without further notice.
