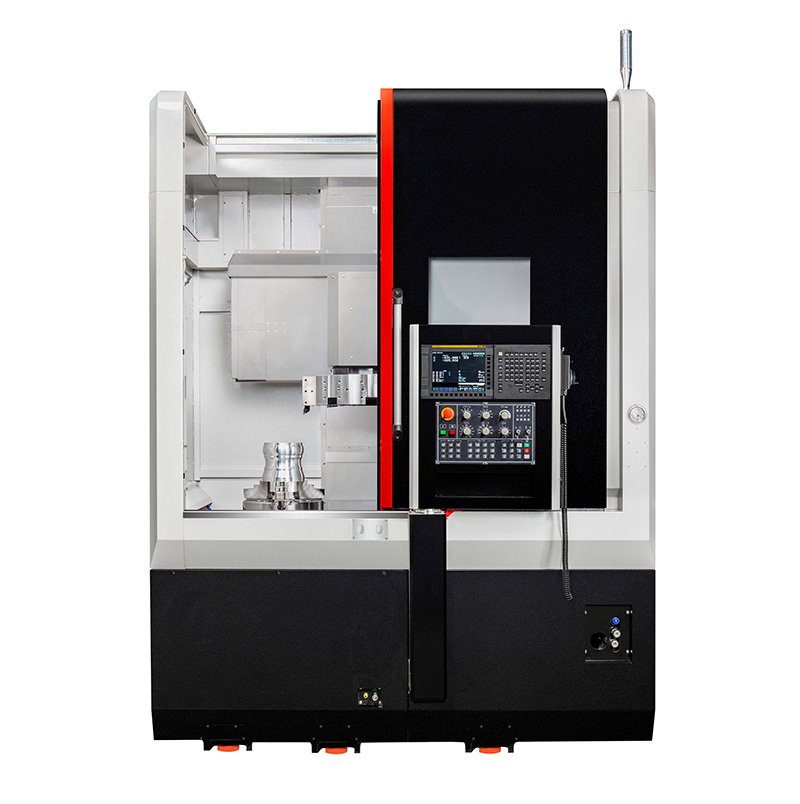

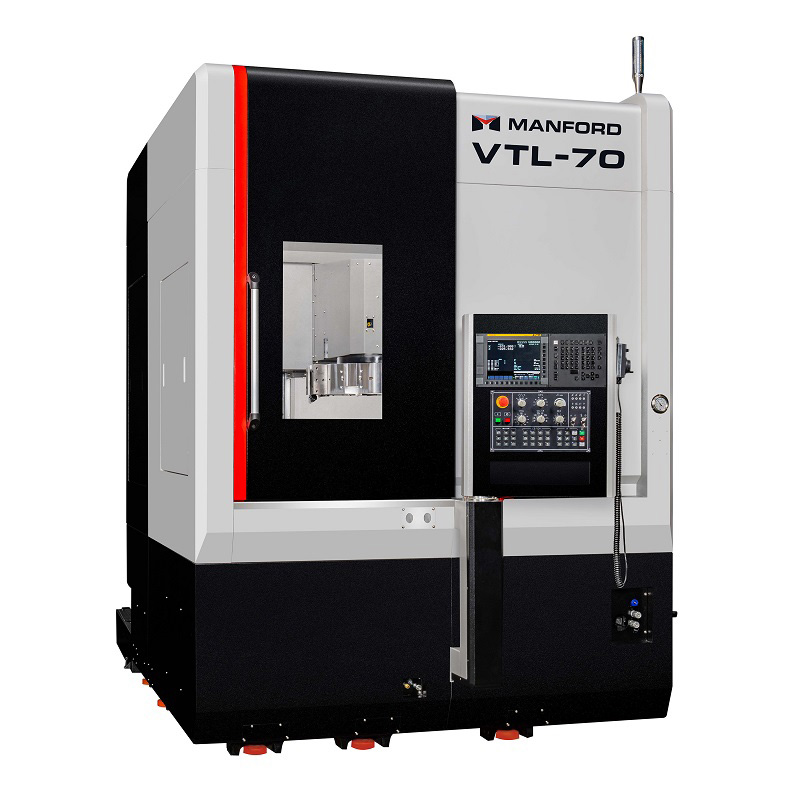

| MACHINE MODEL | VTL-70 |
| Capacity | |
| Max. Swing over bed | ψ800 |
| Max.Turning diameter | ψ700 |
| Max. Turning height | 600 mm |
| Max. Work loading | 1000 kg |
| Spindle | |
| Spindle nose type | A2-11 |
| Max. Spindle speed | 50~2000 rpm |
| Front bearing I.D of spindle | 160 mm |
| Spindle touque | 767 mm |
| Drilling / Tapping | N/A |
| Chuck size | 15” |
| Axis Feed | |
| X axis travel | -40+430 mm |
| Z axis travel | 650 mm |
| Rapid feed- X/Z axis | 12/20 |
| Turret | |
| Type | Hydraulic |
| Number of tool stations | 8 pcs |
| Tool shank size | 32*32/Ø50 mm |
| Motor | |
| Main spindle motor power | 18.5/22(αp 40) |
| Feed motor (X/Z) | 3/4 kw |
| Hydraulic oil pump | 2.2 HP |
| Coolant pump | 0.55*2 kw |
| Power requirement | 50 KVA |
| Utility | |
| Hydraulic tank capacity | 54 L |
| Coolant tank | 300 L |
| Lubrication tank | 2 L |
| Air source | 6 kg/cm2 |
Note: Specifications are subject to change without further notice.
