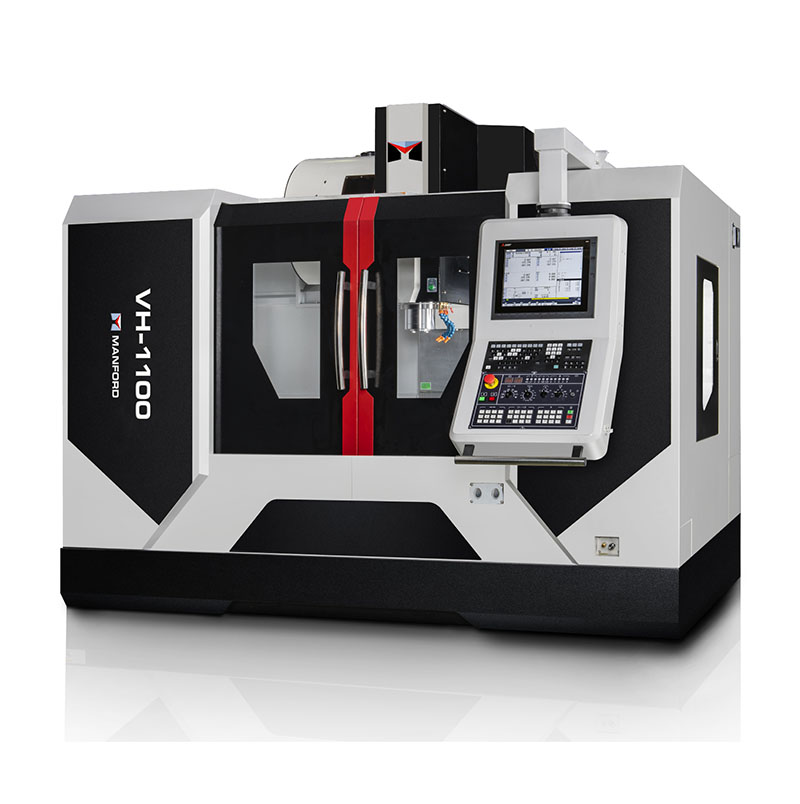

VH-1100/1300

MACHINE MODEL	VH-1100	VH-1300
X TRAVEL	1,100 mm	1,300 mm
Y TRAVEL	700 mm
Z TRAVEL	710 mm
SPINDLE NOSE TO TABLE SURFACE	BT40 / BT50 : 130 ~ 840 mm
TABLE SIZE	1,300 x 650 mm	1,500 x 650 mm
T-SLOT (Q'TY X SIZE X DIST)	5 x 18 x 100 mm
MAX TABLE LOAD	1,300 kgs	1,500 kgs
CNC CONTROL	Mitsubishi / Fanuc / Siemens / Heidenhain / Fagor
SPINDLE
SPINDLE TRANSMISSION	Belt type / Direct type
SPINDLE TAPER	BT40 / BT50
SPINDLE SPEED	BT40: 8,000 rpm / BT50: 6,000 rpm
SPINDLE MOTOR	7.5 / 11 kW
OTHER ITEMS
ATC Capacity	Arm type 24 tools

* Spindle motor power depends on motor selection

*Note: Specifications are subject to change without further notice.
