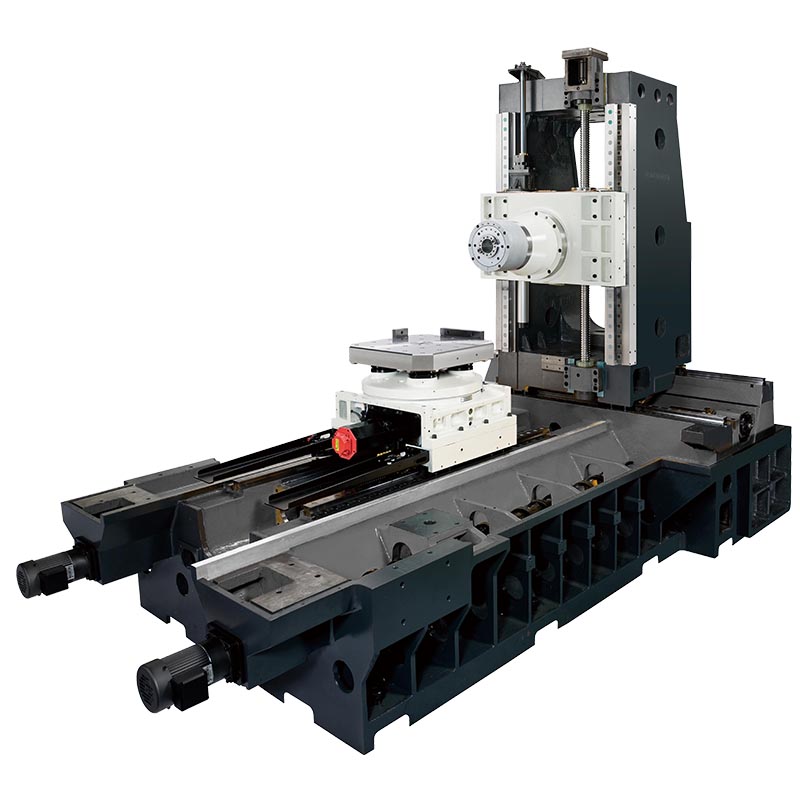

MillingHorizontal Machining CenterAPC

HM-400

inquiry
inquiry

Specification

Travel
X travel

630 mm
Y travel
Z travel
Spindle center to table surface 50~680 mm
Spindle nose to table surface

130~760 mm

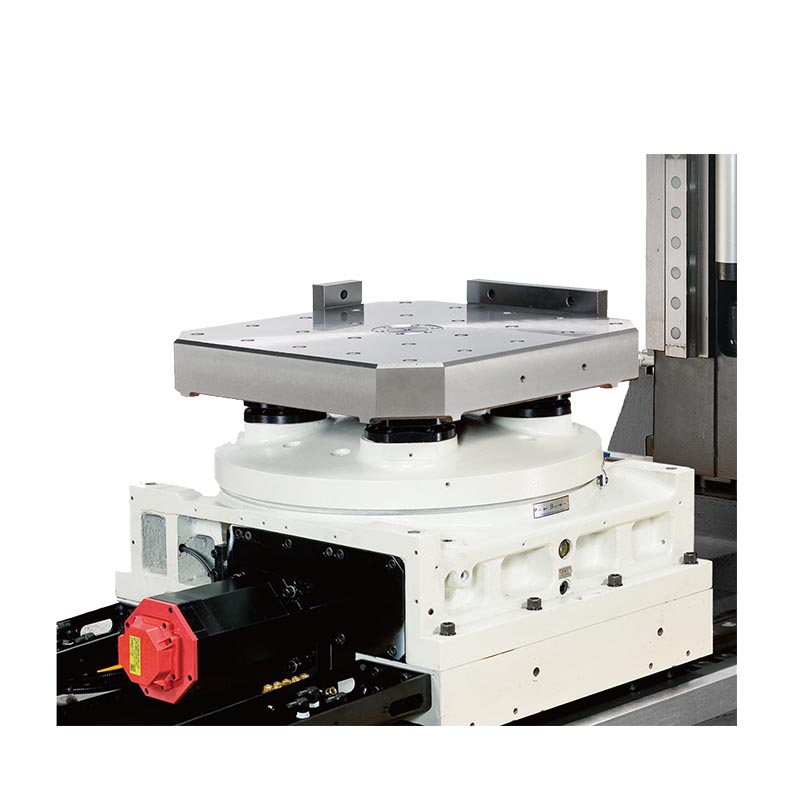

Table
Table surface to floor 1100 mm
Table size

400×400 mm
T-slot/Bolt Spec. 24-M10 x P1.5 x 20
Table Load Capacity 400 kgs
Index precision 0.001°
Spindle
Spindle Taper BT40
Spindle Speed

10000rpm
Feedrate
Spindle moter(cont/30 min) 15/18.5 kw
3-axes cutting feedrate 1-10000 mm/min
3-axes rapid feedrate 36 m/min
3-axes min. setting unit 0.001mm
ATC
Tools 40 Tools

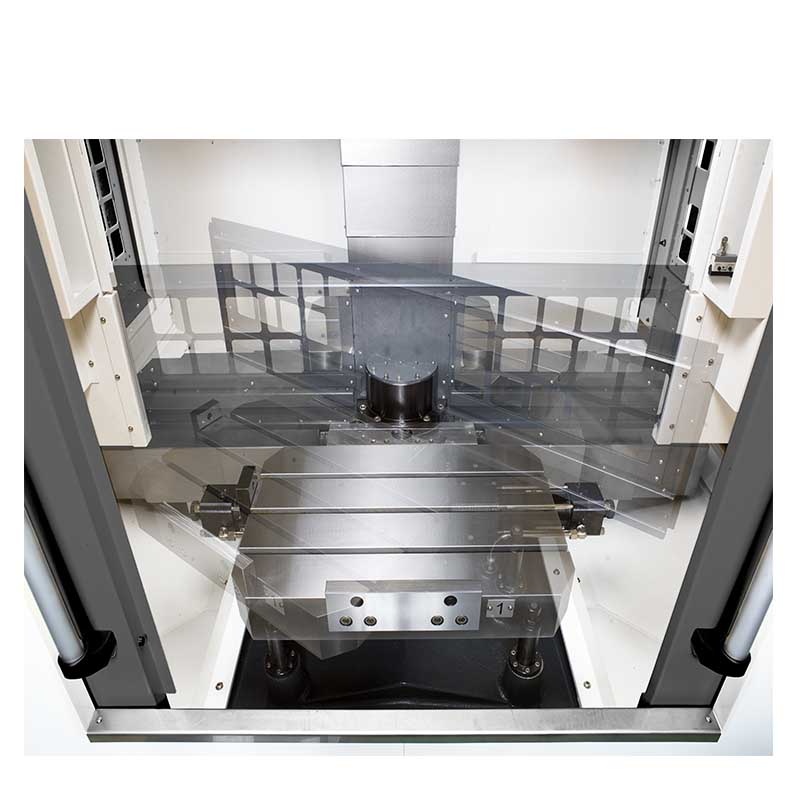

APC
Number of pallets 2 pcs
Method of pallet change Rotary
Pallet change time 8 sec



Note: Specifications are subject to change without further notice.
