Specification

X travel	630 mm (+300~-330)
Y travel	630 mm (+270~-350)
Z travel	510 mm
Spindle nose to table surface	100 ~ 610 mm
Table size	Ø 350 mm
T-SLOT (Q'TY X SIZE X DIST)	8 x 12 x 45º
Max. Table Load	Horizontal 200 kgs / Tilting 150 kgs

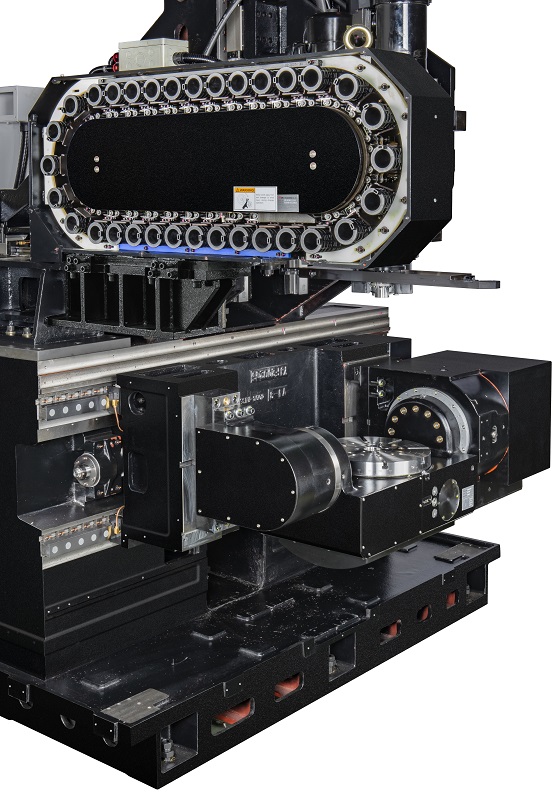

ATC Capacity	32 tools (Chain type)
CNC CONTROL	Fanuc 0iMF 15"

ROTARY TABLE ( A/C Axis )
A AXIS TILTING RANGE	-120˚ ~ + 10˚
C AXIS ROTATING RANGE	360˚

*Spindle motor power depends on motor selection.

Note: Specifications are subject to change without further notice.

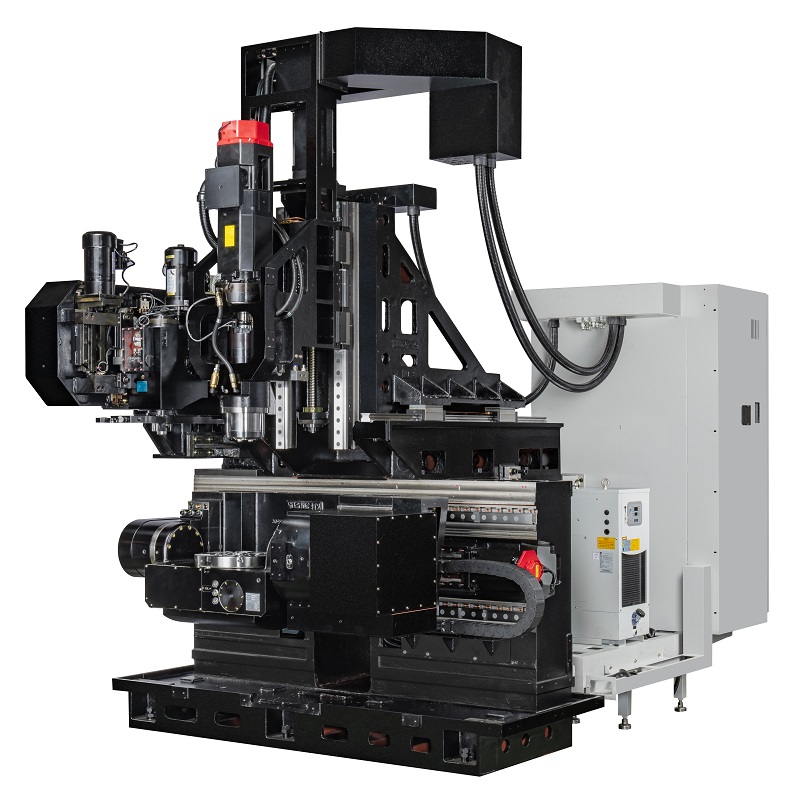

RU-350 is with ram type structure and swiveling rotary table design.
BBT40 taper provided a firmer grip to the tools which prevents tool vibration that affects machining accuracy with optional 24,000 rpm built-in spindle.

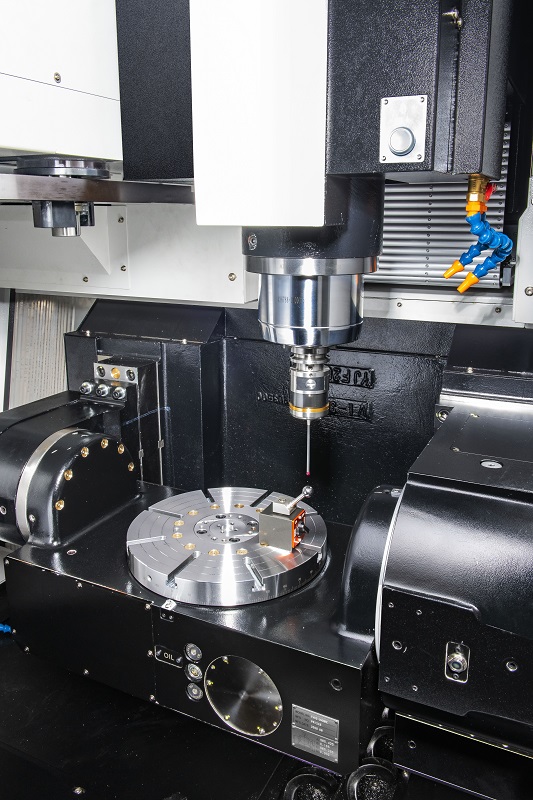

RU-350 is with an embedded Ø350 mm diameter rotary table. Table load capacity is Horizontal 200 kgs and Tilting 150 kgs.
C-axis rotating range is 360º, and max. speed is 22.2 rpm.
Any complex workpiece can be accomplished with a single setup.
RU-350 application industry, such as Aerospace industry, Automotive industry and Hi Tech electronics industry.
