Specification

X travel	1,600 mm
Y travel	900 mm
Z travel	850 mm
SPINDLE NOSE TO TABLE SURFACE	20 ~ 870 mm
Table size	850 x 1,800 mm
T-slot (Q'ty x Size x Dist)	5 x 22 x 150 mm
Max. Table Load	1,500 kgs

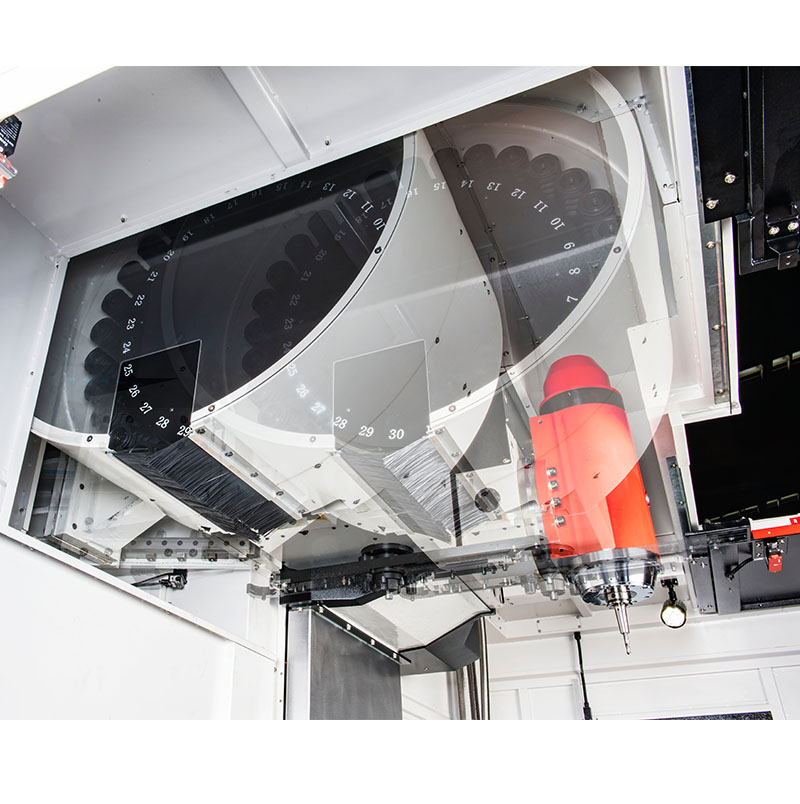

ATC Capacity	24 / 30 / 32 / 40 tools
CNC Control	Heidenhain TNC640
CNC Control	Siemens ONE

Note: Specifications are subject to change without further notice.

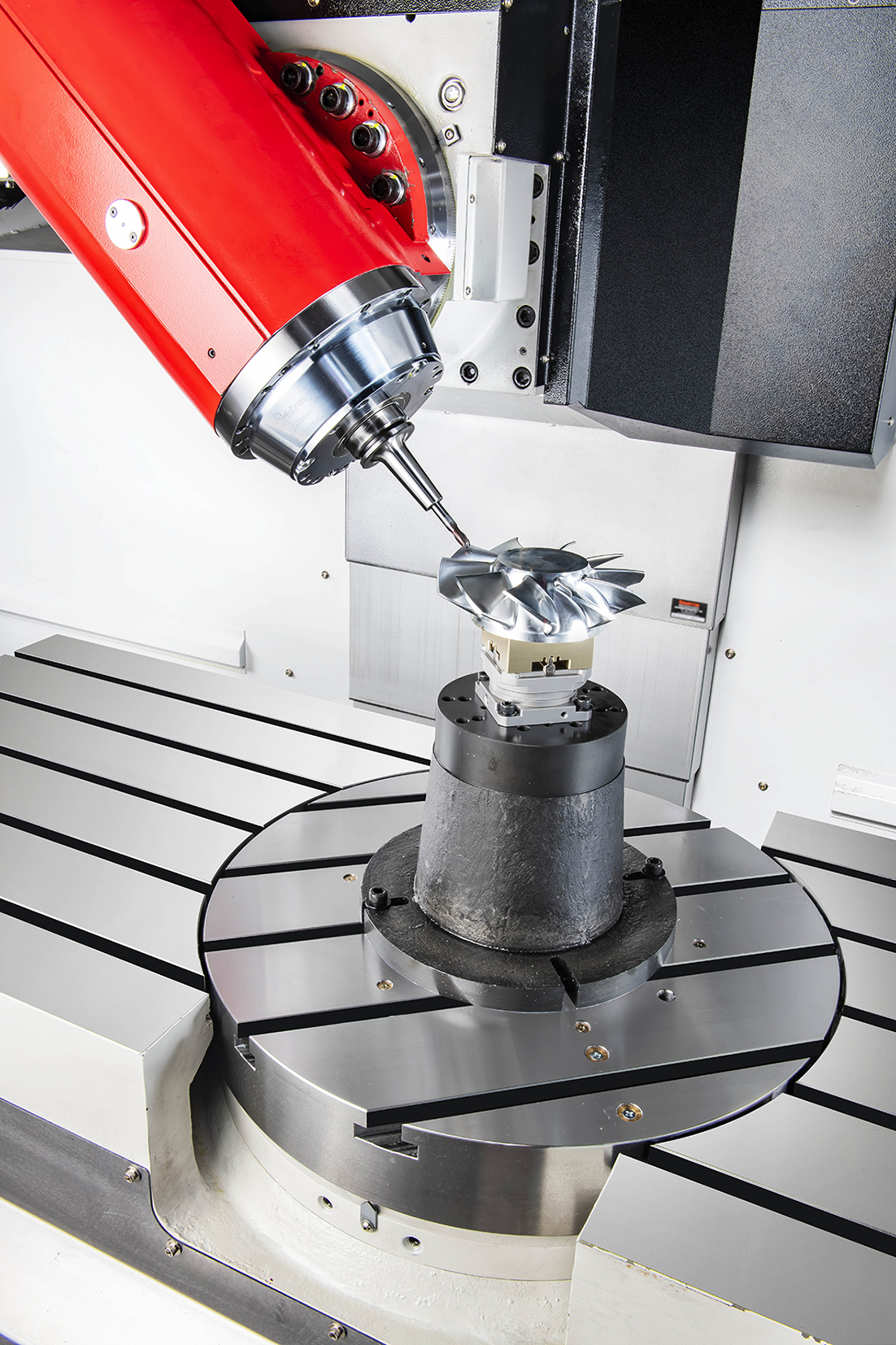

VX-800 5-Axis Machining Center is designed for multiaxes machining of small and large series of complex 5-side workpieces. With swiveling head and rotary table, VX series is able to do simultaneous 5 axes machining with high accuracy.
With outstanding high speed and high precision machining capabilities.
VX-800 5-axis machining center has been highly recognized by customers.

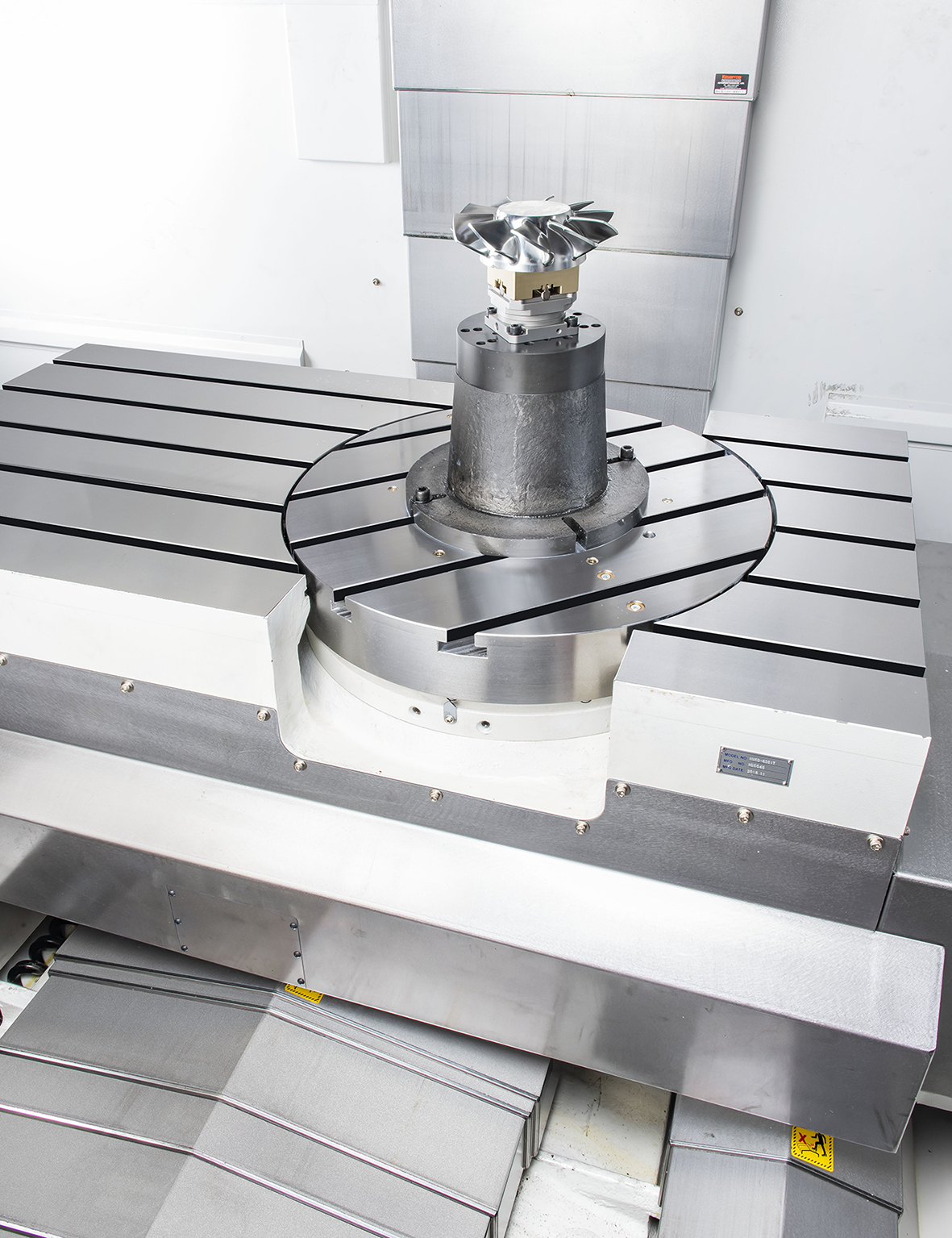

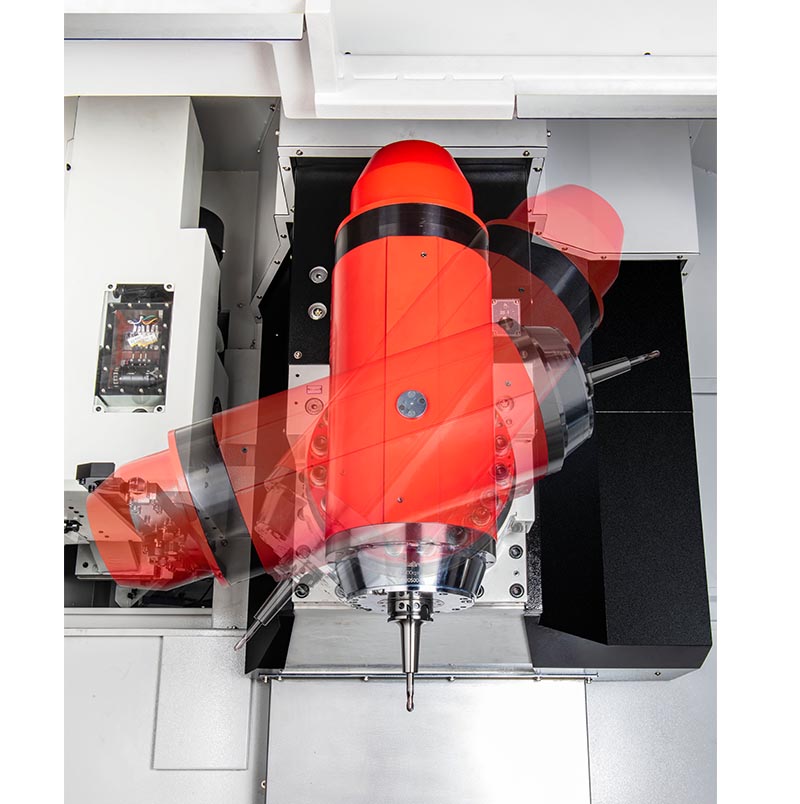

VX-800 is designed with a swiveling spindle head and equipped with a 15,000rpm built-in type high speed spindle. In addition, the machine employs an embedded rotary table.
VX series application industry, such as Aerospace industry, Automotive industry and Hi Tech electronics industry.
Any complex work piece can be accomplished with only a single setup.
